New Equipment > Electric Counterbalance > 7 Series Cushion Electric

7 Series Cushion Electric

4,000 lbs. - 6,500 lbs. Capacity

Our new 4 wheel cushion electric trucks continue to follow Doosan’s tradition of delivering efficient, reliable products, while offering the best value for our customers.

Download Brochure

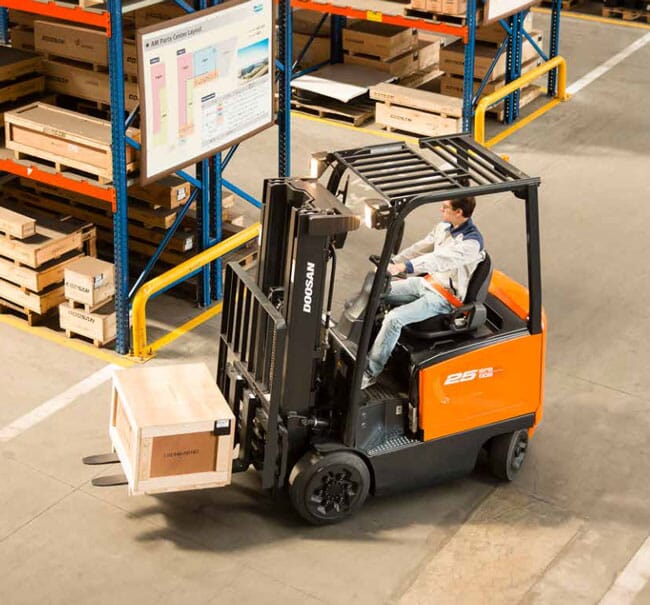

Safety

Guardian Stability System (Optional)

  • Decreased Travel Speed (50%) when mast is raised above primary stage
  • Forward tilt reduced 2 degrees when mast is raised above primary stage
  • Alarm when mast is raised above primary stage with mast tilted more than 2 degrees

Unlimited Ramp Hold

The Electro-magnetic Auto Parking Brake (EPB) prevents the forklift from rolling back if the truck is stopped on a slope

Operator Sensing System

Whenever the operator leaves the seat, traveling and lifting will be restricted.

ITC (Intelligent Torque Control)

Closed-loop feedback system monitors loads on drive and hydraulic motors to maintain speed consistency whether the truck is empty or loaded.

Download Brochure
Safety

Convenience

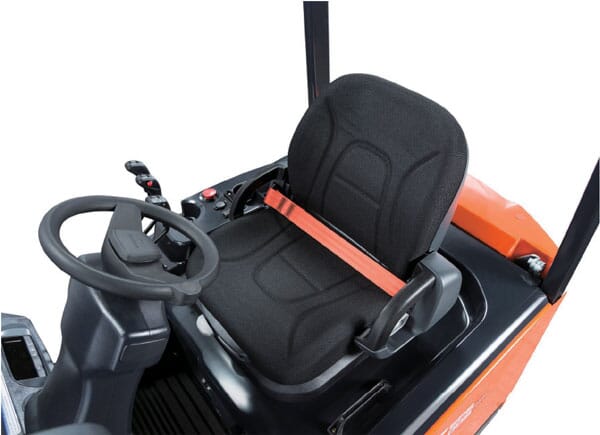

Convenience

Operators perform best when their working conditions are ideal, and the Doosan 7 Series has been designed to make this a reality. From the steering wheel to the full suspension seats, everything about these trucks have the operators’ in mind.

  • Convenience Tray
  • Rear Grab Bar
  • Hydraulic Levers
  • Finger Tip Controls (Optional)

Battery Discharge Indicator

Lifting will be disabled when the battery is discharged to 20% during operation. This function is to protect the battery from damage and prevent sudden loss of power due to a dead battery.



Download Brochure

Maintenance

  • Easy to Access Controller & Motor Compartment
  • Easy Access Battery Cover
  • Easy Diagnostics

Maintenance Free Electric Motors

Our innovative AC technology of drive and hydraulic motors eliminates motor brushes, commutators and directional contactors, thus reducing maintenance and decreasing overall operating costs.

Run Time and Trouble shooting Diagnostics

The controller provides both run-time and trouble-shooting diagnostic capability to tell you the source of a problem so it can be corrected quickly and easily.

Download Brochure
Maintenance

Extended Value

Extended Value

The BC-7 Series provides smooth operation in various work applications. With the precision AC motor controller and the optimized design, Doosan’s new machine is able to deliver efficient operation even in the tightest spaces.

Maximized Productivity in Warehouse Applications

Effective storage is the primary goal for many warehouse managers. Our 4 wheel models have brand new steer axles, which have been carefully designed to minimize the turning radius. It can now achieve an outstanding 86° steer angle, enabling the machines to maneuver with ease even in the tightest spaces.

Cornering Speed Control

The angle sensors control the travel speed at sharp turns. It automatically reduces the travel speed to prevent tip overs during turns

Outdoor Operations

The Doosan 7 Series electric forklifts are practically waterproof and are safe for outdoor use.

Download Brochure

7 Series Cushion Electric

Our new 4 wheel cushion electric trucks continue to follow Doosan’s tradition of delivering efficient, reliable products, while offering the best value for our customers.

MODELBC20S-7BC25S-7BC25SE-7BC30S-7BC32S-7
RATED CAPACITY (lb)4,0005,0005,0006,0006,500
BATTERYLEAD-ACIDLEAD-ACIDLEAD-ACIDLEAD-ACIDLEAD-ACID
DRIVE MOTOR, 1 HR RATING (hp)2121212121
LIFTING MOTOR RATING AT 15% (hp)2424242424
