New Equipment > Electric Counterbalance > 7 Series Cushion/Pneumatic Electric Three Wheel

7 Series Cushion/Pneumatic Electric Three Wheel

3,000 lbs. - 4,000 lbs. Capacity

Our 7 Series 3 wheel counter balance forklift trucks continue the Doosan tradition of delivering simple, powerful performance, at the best possible value for our customers.

Download Brochure

Safety

Ease of Access Ensures Maximum Safety

  • Large step plate with an anti-slip pattern ensures firm footing even for large safety boots
  • Easy grip entry bar makes entering and exiting the machine safer
  • Large uncluttered floor plate with no trip hazards provide improved comfort and more leg room
  • Angled floor plate reduces strain on the ankles, and large pedals ensure maximum safety and ease of operation

Rear Grab Handle

Adds to safety, comfort and convenience when traveling in reverse.

Optimum Visibility

Designed with precision, the overhead guard profile with angled roof bars provides a clear view upwards while ensuring ultimate strength and safety.

Unlimited Ramp Hold

The Electro-magnetic Auto Parking Brake (EPB), prevents the forklift from rolling back if parked on slopes, allowing the operator to safely get out without braking.

Download Brochure
Safety

Convenience

Convenience

Ergonomic Interior Design

The steering column, full suspension comfort seat, armrest and even the optional headrest are all fully adjustable to accommodate any operators’ individual preferences.

Easy to Control

The all-new Finger-tip Controls: Optimal ergonomics giving optimal performance. These fast, precise and instinctive controllers make operating the new Doosan 7 Series effortless and efficient.

Panoramic Mirror

Provides the operator a clear view of the whole back & rear working area, improving work safety & efficiency

Easy and Instinctive Instrument Panel

Provides critical information instantly. Fuel, oil pressure, temperature and hour usage are well lit and clearly indicated.

Download Brochure

Maintenance

Extended maintenance intervals and advanced technology componentry reduce the overall cost of maintenance.

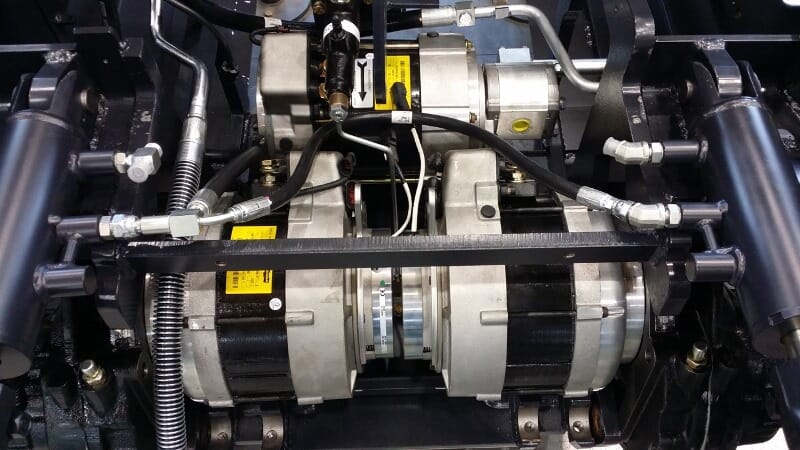

  • Easy to Access Controller & Motors Room
  • Wide Open Battery Cover
  • Tool-Less Side Cover with Air Ventilation
  • Easy Diagnostic & Fine-Tune
  • Curtis controller, reliable stable operation. IP65 rated.
Download Brochure
Maintenance

Extended Value

Extended Value

Maximized Productivity in Warehouse Applications

Effective storage is the primary goal for many warehouse managers. Our 3 wheel models have steer axles that turn 90°, enabling the machines to maneuver with ease even in the tightest spaces.

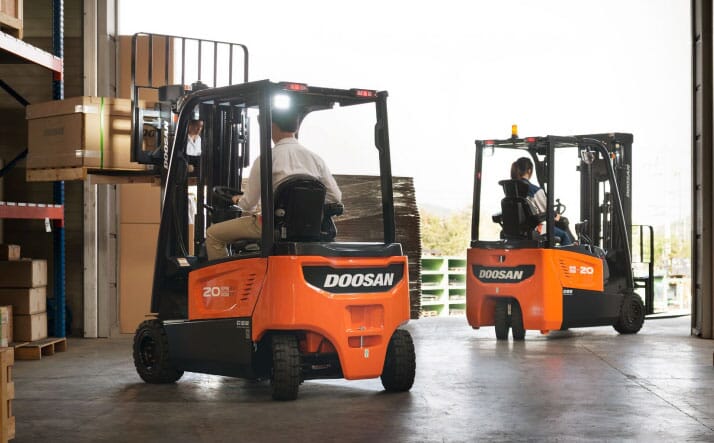

Outdoor Operations

The Doosan 7 Series electric forklifts are waterproof and are safe for outdoor use. The sealed controllers are rated IP65 and the motors are rated IP43, with all related wiring & connectors being silicon-sealed.

Oil-Cooled Disc Brakes

Unique in it’s class. Instead of traditional brake shoes, the 7-Series Electric Forklifts use oil cooled disc brakes that are virtually maintenance free and last 5 times as long.

Download Brochure

7 Series Cushion/Pneumatic Electric Three Wheel

Our 7 Series 3 wheel counter balance forklift trucks continue the Doosan tradition of delivering simple, powerful performance, at the best possible value for our customers.

MODELB15T-7B18T-7B20T-7
RATED CAPACITY (lb)3,0003,5004,000
BATTERYLEAD-ACIDLEAD-ACIDLEAD-ACID
DRIVE MOTOR, 1 HR RATING (kW)6.0 x 26.0 x 26.0 x 2
LIFT MOTOR RATING AT 15% (kW)141414
