OSS (Operator Sensing System)
Audible alarm will sound when operator leaves from seat without parking brake applied. Truck stops moving with directional switch in either forward or reverse when operator leaves the truck without parking brake applied. Transmission automatically shifts into neutral.
ITC (Intelligent Torque Control)
Closed-loop feedback system monitors loads on drive and hydraulic motors to maintain speed consistency whether the truck is empty or loaded.Download Brochure

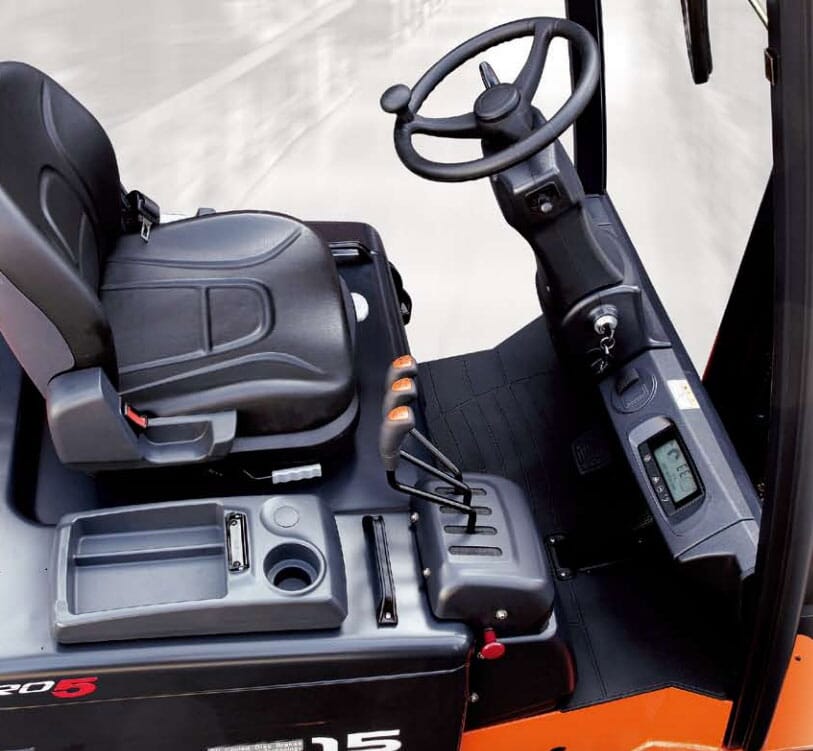

Operator friendly features
- Intelligent Instrument and Control Panel
- Spacious Operator Compartment
- High Visibility Overhead Guard and Front-end
Steering Angle Sensor
It informs the operator of steer wheel angle at all times and compensates truck travel speed through the differential drive during aggressive cornering.Download Brochure
Maintenance Free Electric Motors
Our innovative AC technology of drive and hydraulic motors eliminates motor brushes, commutators and directional contactors, thus reducing maintenance and decreasing overall operating costs.
Run Time and Trouble shooting Diagnostics
The controller provides both run-time and trouble-shooting diagnostic capability to tell you the source of a problem so it can be corrected quickly and easily.
Doosan’s goal is to make your material handling organization as efficient and reliable as possible. The durability and reliability of our BC18S series will aid in minimizing your truck down time and will help reduce total maintenance cost.

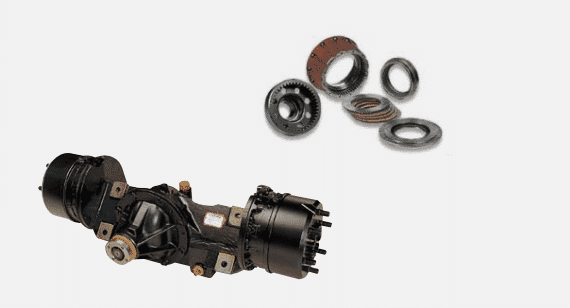

- Oil- Cooled Disc Brakes(ODB)
- Rugged and Durable Transaxle
Doosan Exclusive ACT (Active Control Technology)
This innovative system provides several productivity advantages:
- Active Performance Control : self-adjusts performance criteria to changes in operating conditions
- Active Energy control : maintains consistent performance through 80% of battery charge life
- Active Comfort Control : customizes operating parameters to match driver’s style for increased comfort, confidence & control
- Active Travel Control : optical pulse steering angle sensor controls the travel speed while turning
- Active Heat Control : system self protects when overheating detected to correct temperature imbalance

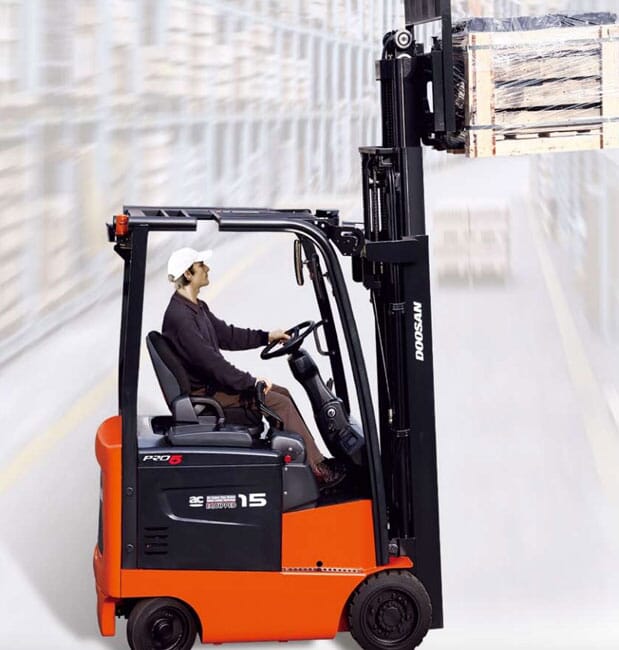

Pro-5 Series Cushion Electric Four Wheel
Our Doosan design team focused on performance, productivity and energy efficiency in developing our new BC/S Pro 5 Series. By providing full AC control of both drive a hydraulic systems, these units provide productivity package advantages
|RATED CAPACITY (lb)||3,000||3,500||4,000|
|DRIVE MOTOR, 1 HR RATING (hp)||13.4||13.4||13.4|
|HYD. MOTOR AT 15% DUTY (HP)||16.1||16.1||16.1|
