7 Series IC Pneumatic

13,500 lbs. - 15,500 lbs. Capacity

Robust chassis design and heavy duty build quality ensure Doosan’s 7-series is tough enough for any application.

Download Brochure

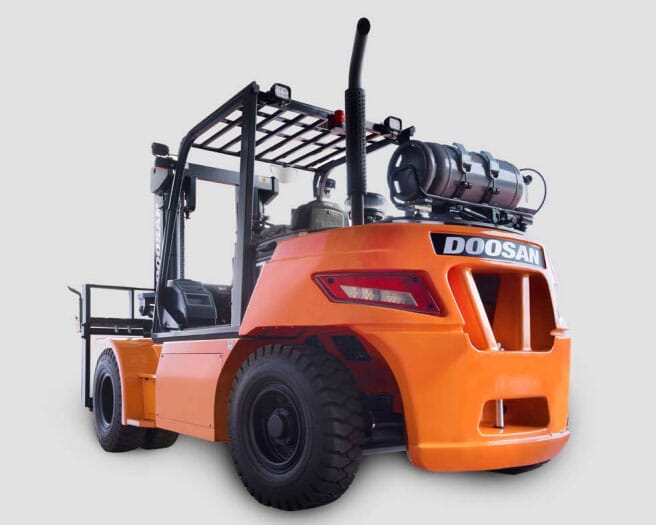

Safety

OSS (Operator Sensing System)

  • Truck will not move without an operator in the seat.
  • Lift and Lower function disabled if the operator is not in the seat.
  • Tilt function will be locked if no operator is in the seat. Alarm will sound if operator leaves the seat without applying parking brake.
  • Seat belt warning light on dashboard to remind operator to fasten seat belt.

Locking type gas spring for Hood

Improve operator’s safety and convenience with locking function.

Anti Slip Step Plate

Increase safety when operator enters the forklift especially in the snowy weather.

Download Brochure
Safety

Convenience

Convenience

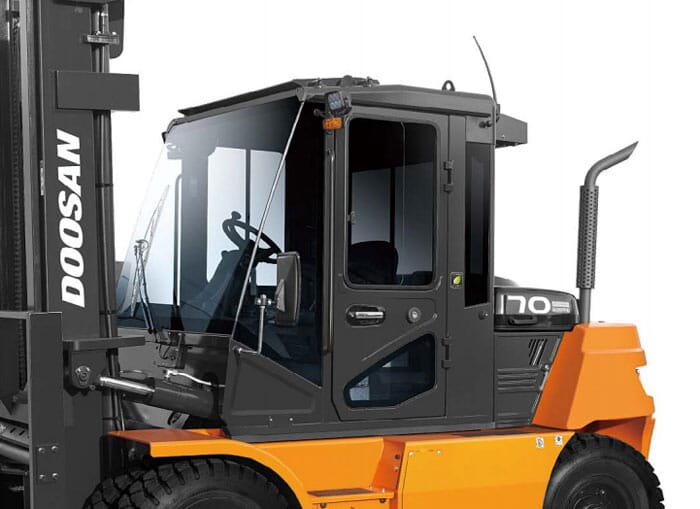

New Zeus Cabin, Great Comfort and Productivity

New Zeus Cabin provides to operator not only great comfort but also higher productivity with ergonomically design features.

Spacious Leg Room and Operator Comfort

The neat and wide-open floorboard provides operator with plenty of foot room to make entry and exit a breeze.

Various Options

  • Heater / Air Conditioner
  • Panoramic Mirror
  • Radio or MP3 Player
  • Rear View Camera
Download Brochure

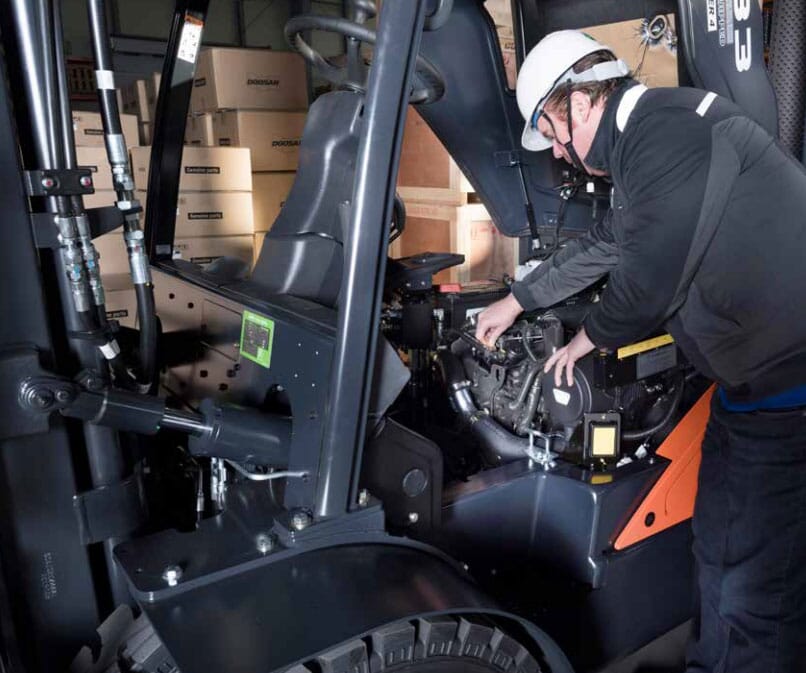

Maintenance

Easy to access

Possible to check transmission oil easily through the window located under the seat box. Easy to check the Engine diagnostic.

Integrated Electrical Components

Wide hood opening range for best accessibility. Great location of fuel filter for serviceability.



Download Brochure
Maintenance

Extended Value

Extended Value

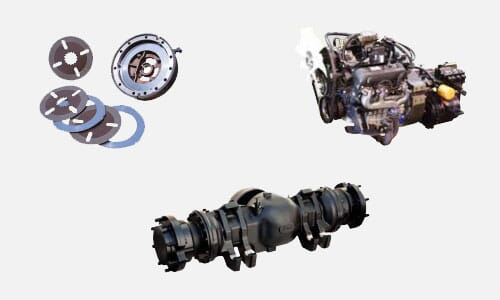

Oil- Cooled Disc Brakes(ODB)

Recommended for applications in humid, abrasive or corrosive environments, or with ramp, loading and unloading applications.

PSI 4.3L (133HP)

The well known, proven PSI 4.3L LP gas engine has excellent durability. Low noise and minimal vibration features add to operators comfort.

Full Floating Drive Axle

Strong one-piece cast housing keeps axle components aligned.

Download Brochure

7 Series IC Pneumatic

Robust chassis design and heavy duty build quality ensure Doosan’s 7-series is tough enough for any application.

MODELG60S-7G70S-7
RATED CAPACITY (lb)13,50015,500
MAX TORQUE (ft.lb/rpm)283.9/1,800283.9/1,800
ENGINE MODELPSI 4.3LPSI 4.3L
POWER (hp/rpm)93.8/2,50093.8/2,500
DISPLACEMENT (cc)4,2944,294
