New Equipment > Internal Combustion – Pneumatic > 7 Series IC Pneumatic

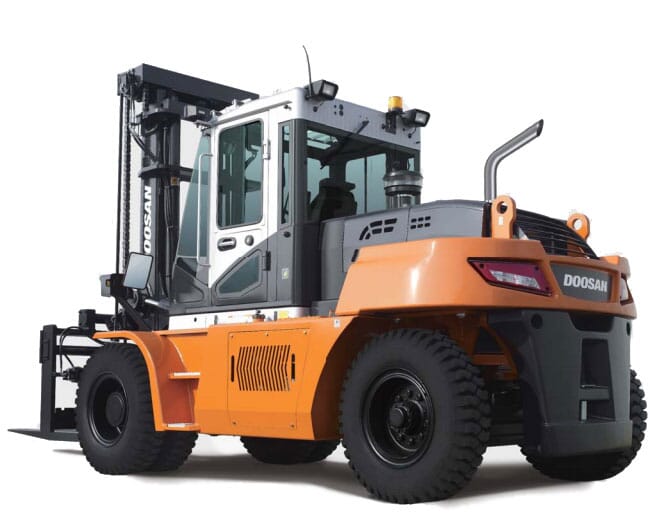

7 Series IC Pneumatic

22,000 lbs. - 36,000 lbs. Capacity

Superb performance and high power output thanks to the new generation of Doosan built diesel engines. Rugged reliability, a strong and rigid chassis frame, and a design that uses the best materials possible, ensures that Doosan products are durable enough to handle the most rigorous applications. Pro-7 Series Forklifts are built to tackle the most demanding applications.

Download Brochure

Safety

OSS (Operator Sensing System)

  • Truck will not move without an operator in the seat.
  • Lift and Lower function disabled if the operator is not in the seat.
  • Tilt function will be locked if no operator is in the seat. Alarm will sound if operator leaves the seat without applying parking brake.
  • Seat belt warning light on dashboard to remind operator to fasten seat belt.



Anti Slip Step Plate

Increase safet y when operator enters the forklift especially in the snowy weather.

Download Brochure
Safety

Convenience

Convenience

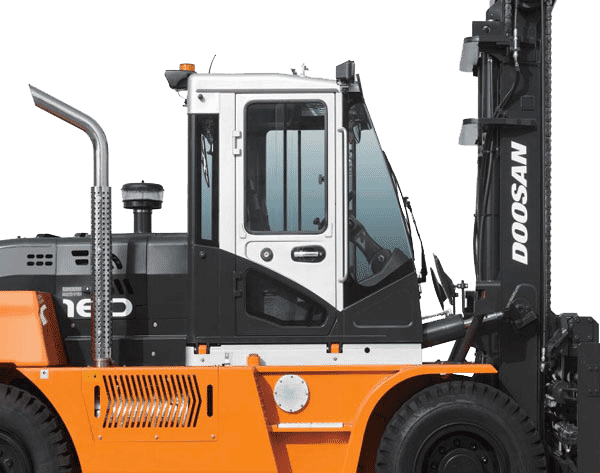

New Zeus Cabin, Great Comfort and Productivity

New Zeus Cabin provides to operator not only great comfort but also higher productivity with ergonomically design features.

Spacious Leg Room and Operator Comfort

The neat and wide-open floorboard provides operator with plenty of foot room to make entry and exit a breeze.

Various Options

  • Heater/Air Conditioner
  • Panoramic Mirror
  • CD or MP3 Player
  • Rear View Camera
  • Windshield Defroster Fan
  • Rear Grab Bar with Horn
  • Public Announcement (PA) System
Download Brochure

Maintenance

Easy to access

Possible to check transmission oil easily through the window located under the seat box. Easy to check the Engine diagnostic.

Integrated Electrical Components

Wide hood opening range for best accessibility. Great location of fuel filter for serviceability.

Oil- Cooled Disc Brakes (ODB)

All Doosan 22,000 – 36,000 lb Series Forklifts come equipped with Oil-Cooled Disc Brakes (ODB). The enclosed brake system eliminates outside contamination, significantly extends brake life, and decreases maintenance costs. The ODB service interval is five times longer than conventional shoe brakes.

Download Brochure
Maintenance

Extended Value

Extended Value

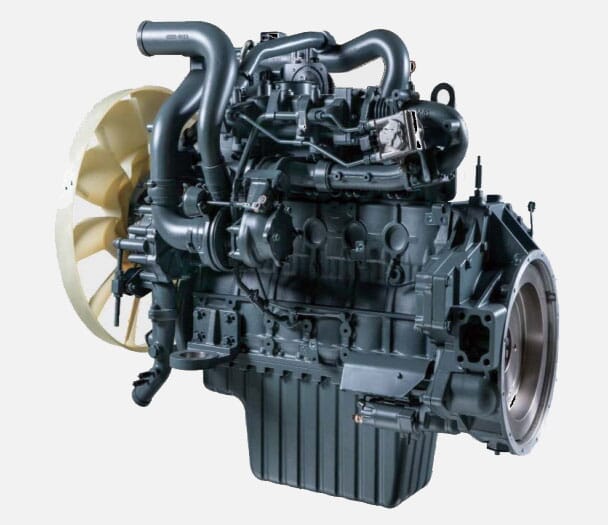

The new Doosan DL06P 6.0 liter diesel engines are designed for effi ciency and provide the performance and quality that you expect. A waste-gate turbo charger coupled with a high pressure common rail fuel injection system provides exceptionally high torque at low rpm with the bonus of lower fuel consumption.

After Treatment System

  • Low fuel consumption offers excellent performance while complying with EPA Tier 4 Final emission regulations.
  • Selective Catalyst Reduction (SCR) system: The Pro-7 22,000 – 36,000 lb Series uses a Diesel Exhaust Fluid (DEF) as well as a catalytic converter to signifi cantly reduce NOx emissions.
Download Brochure

7 Series IC Pneumatic

Superb performance and high power output thanks to the new generation of Doosan built diesel engines. Rugged reliability, a strong and rigid chassis frame, and a design that uses the best materials possible, ensures that Doosan products are durable enough to handle the most rigorous applications. Pro-7 Series Forklifts are built to tackle the most demanding applications.

MODELD100S-7D120S-7D140S-7 D160S-7
RATED CAPACITY (lb)22,00026,00031,00036,500
MAX TORQUE (ft.lb/rpm)535/1,400535/1,400535/1,400535/1,400
ENGINE MODELDL06PDL06PDL06PDL06P
POWER (hp/rpm)172.6/2,100172.6/2,100172.6/2,100172.6/2,100
DISPLACEMENT (cc)5,8905,8905,8905,890
