Deluxe Suspension Seat with OSS (Operator Sensing System)
A comfortable deluxe suspension seat with OSS(Operator Sensing System), a large seatback angle, longer seat travel length and operator’s weight resistance on front side allow multiple adjustments for optimum seating comfort.
- Parking alarm
- Seat belt indicator
- Neutral shift feature
Auto Tilt Leveling (Optional)
Easily returns mast to upright vertical position with the simple push of a buttonDownload Brochure

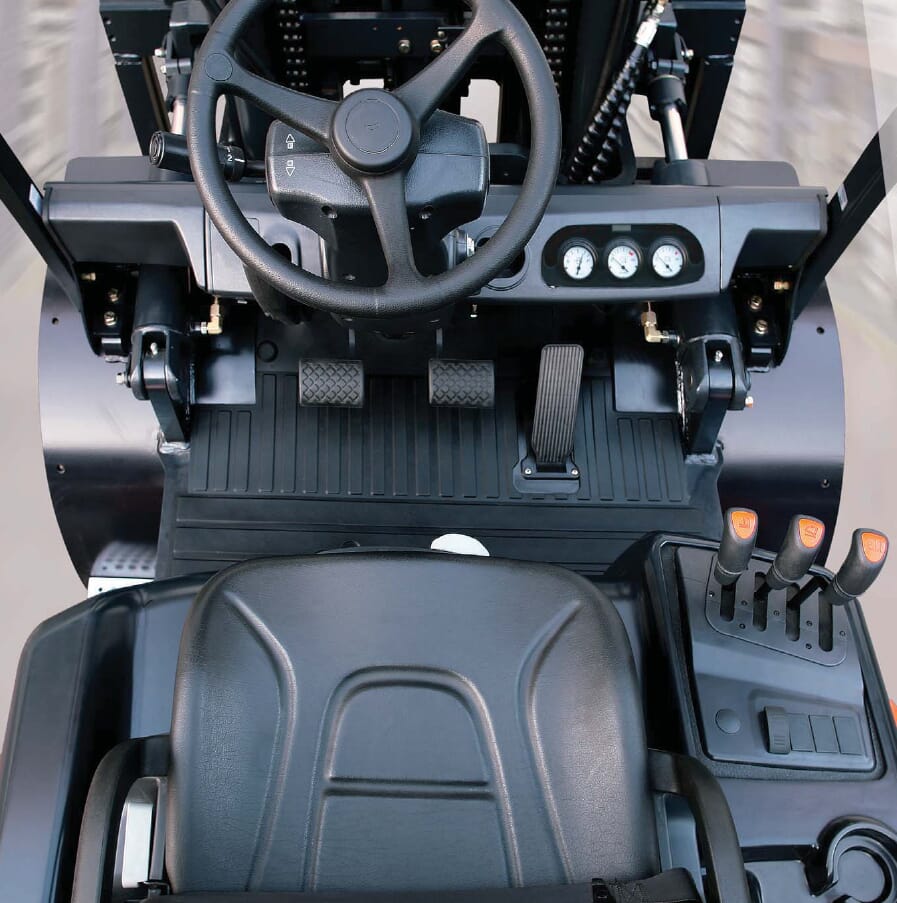

Spacious Operator Compartment
Wide open operator leg room, stepless tiltable steering column and ergonomically located operator pedals with a low cowl height facilitate ease of operation.
High Visibility Overhead Guard and Front-end
Wider mast window, repositioned hydraulic hoses and flat bar style overhead guard optimizes operator sight lines forward, up and to the load.
Intuitive Instrument Panel
An intuitive display with integrated indicators keep operators aware of the vehicle conditions quickly and effectively.
Optimum Pedal System(OPS)
Furnishes excellent feel of the drive system and the electronic accelerator provides secure and exact speed control.Download Brochure
Doosan’s Goal is to Make Your Material Handling Operation as Efficient and Reliable as Possible, by minimizing Down Time to Reduce Overall Maintenance Cost.

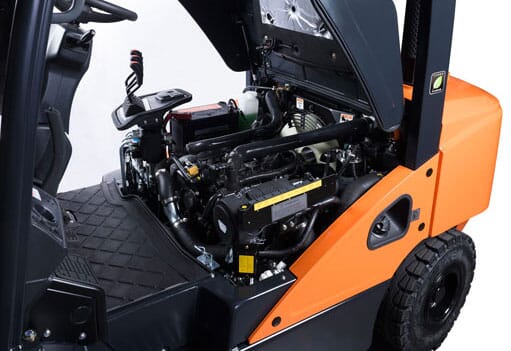

Tool-less Side Cover and Floor Plate facilitates Serviceability
Enhanced Maintenance and Serviceability
Integration of Electrical Components for Easy Maintenance
Fuse and relay box located in front of the engine simplifies servicing
Hydrostatic Steering System
- No mechanical connections between steering wheel and steer axle for reduced maintenance.
- Easy Access grease fittings for proper lubrication.
Oil-Cooled Disc Brakes(ODB)
Recommended for applications in humid, abrasive or corrosive environments, or with ramp, loading and unloading applications. Lasts 5 times longer than conventional brakes.Download Brochure

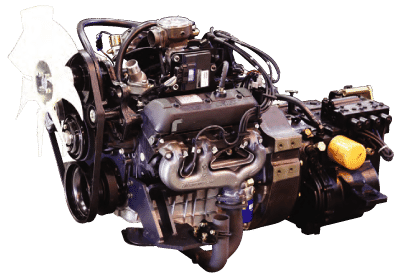

PSI 4.3L Engine (LPG/Dual Fuel)
Superior engine performance is driven by an ECU that integrates and coordinates all critical functions including: governor, variable ignition timing, air-fuel ratio control and engine protection. This LPG/Optional Dual Fuel engine is equipped with roller value lifters, lowering overall friction and improving fuel efficiency.
The nodular iron crankshaft has undercut and rolled fillets, increasing the longevity of the engine.Download Brochure

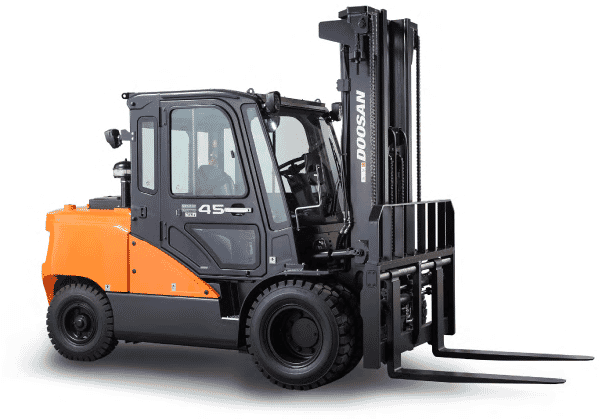

7 Series IC Pneumatic
Doosan’s forklift trucks are equipped to withstand the rugged conditions that exist in lumber yards, the hot environments of the paper industry and the off-road conditions of a scrap metal yard.
|RATED CAPACITY (lb)||8,000||9,000||10,000||11,000||12,000|
