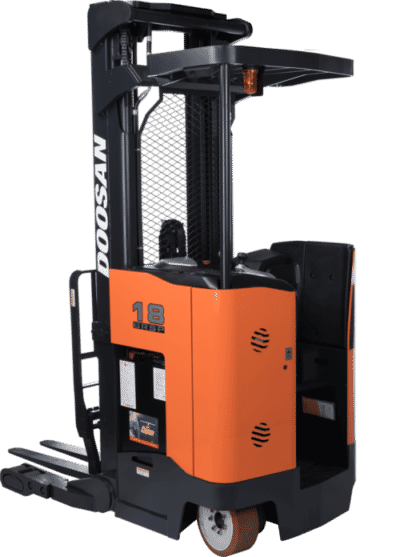

7 Series Electric Pantograph Reach

3,500 lbs. - 4,000lbs. Capacity

The Doosan BR18/20SP-7 Narrow Aisle Reach Truck can increase storage utilization by reducing aisle width as compared to the usage requirements of sitdown-type forklifts. This allows more storage for products in the same amount of warehouse space. The BRSP series of Narrow Aisle Pantograph Reach Trucks hold true to the Doosan tradition of delivering reliable, state of the art technology at a competitive price.

Download Brochure

Safety

Auto Deceleration System

An Auto Deceleration feature is included that automatically slows travel speed when turning to provide an extra margin of safety.

Auto Centering Drive Tire

At start up, the drive tire will automatically center in the forward direction to prevent accidental movement in the wrong direction and potential damage or injury.

Download Brochure
Safety

Convenience

Convenience

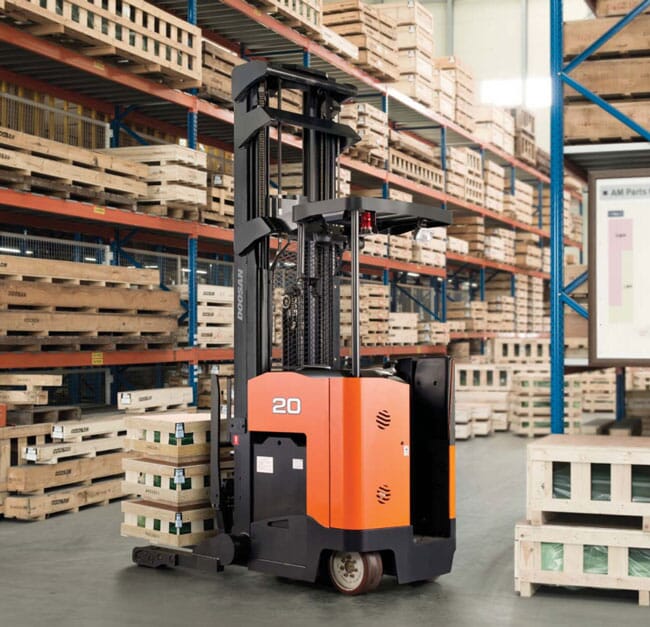

Doosan knows the operator is the most important part of a productive warehouse system. An operator who is comfortable, confident and aware is a productive operator.

Aux Power Outlet

  • USB Type (5V)
  • Cigar Jack Type (12V)

Padded Operator Compartment

  • Knee Pad
  • Back Rest
  • Thigh Pad



Download Brochure

Maintenance

Lower Maintenance Costs

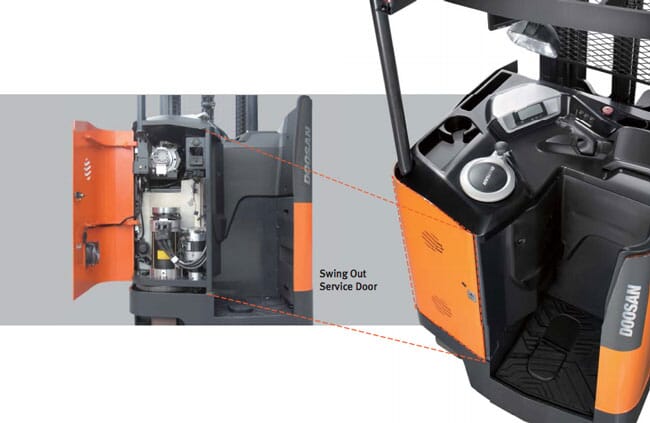

The swing out service door and removable dash provide convenient access to all major components speeding repair time and reducing downtime.

The BRSP AC motors require virtually no maintenance and the Curtis built-in diagnostics make troubleshooting quick and easy

Download Brochure
Maintenance

Extended Value

Extended Value

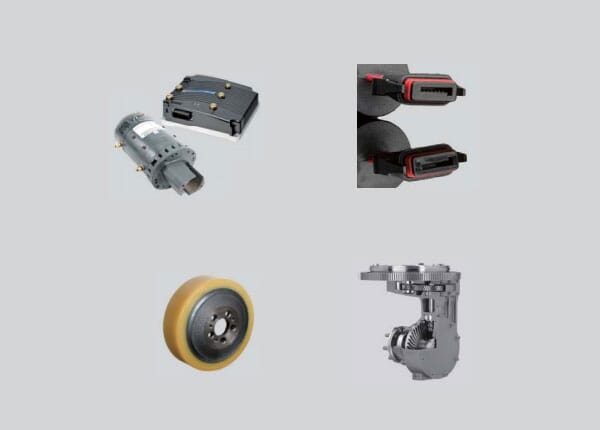

Self Thermal Protection – Controller & Motor Cutback System

Offers excellent protection to the drive and lift motor for increase reliability and durability in demanding applications.

Water-tight silicon sealed for durability

Electrical connections are sealed with silicon to prevent water from penatrating and causing short circuits.

Reduced Maintenance Transaxle

Tight manufacturing tolerances reduce heat and wear Break in oil change after 50 hours is all that is required.

Vulkollan Tire and Load Wheels

Superior tear and abrasion resistance compared to standard poly tires and wheels.

Download Brochure

7 Series Electric Pantograph Reach

The Doosan BR18/20SP-7 Narrow Aisle Reach Truck can increase storage utilization by reducing aisle width as compared to the usage requirements of sitdown-type forklifts. This allows more storage for products in the same amount of warehouse space. The BRSP series of Narrow Aisle Pantograph Reach Trucks hold true to the Doosan tradition of delivering reliable, state of the art technology at a competitive price.

MODELBR18SP-7 BR20SP-7
RATED CAPACITY (lb)3,5004,000
LIFT SPEED, UNLOADED (fpm)120120
LOWER SPEED, UNLOADED (fpm)110110
TRAVEL SPEED (mph)7.57.5
